Dual Energy X Ray Baggage Scanner Machine Accurate Security For Small Packages

Place of Origin China
Brand Name AT
Certification CE FCC RoHS ISO9001 ISO14001 OHSAS
Model Number AT5030C
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Large carton packaging
Delivery Time 4-6 Weeks
Payment Terms L/C, T/T
Supply Ability 100PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Noise Level < 58 DB(A) Weight 320KGS
Power Consumption 0.5 KW (MAX) (Power Supplyl AC220V±10%,60Hz±5Hz

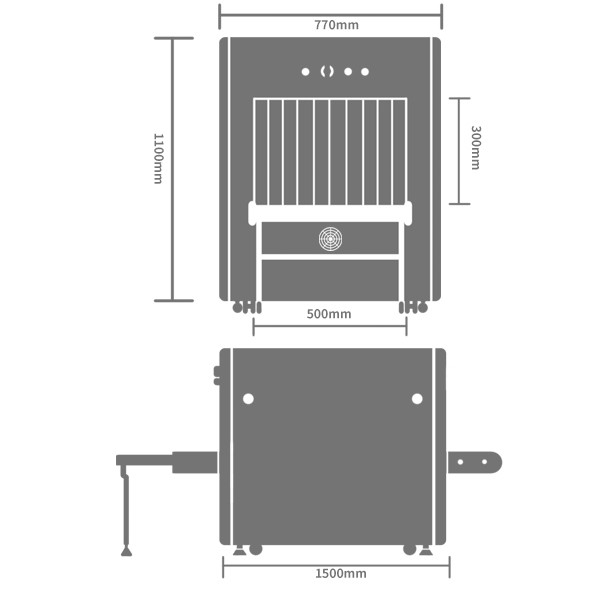

Channel Height 650 Mm Equipment Dimensions 1500 Mm(L) * 770mm(W)* 1100mm(H)
Packaging Dimensions 1570 Mm(L) * 840mm(W)* 1270mm(H)
High Light

Accurate X Ray Baggage Scanner

,

X Ray Baggage Scanner Machine

,

Baggage Scanner Machine Security

Leave a Message
Product Description

Product Description:

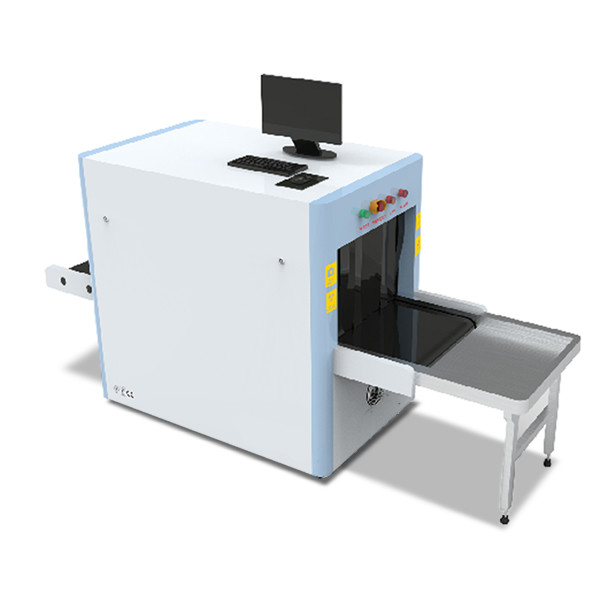

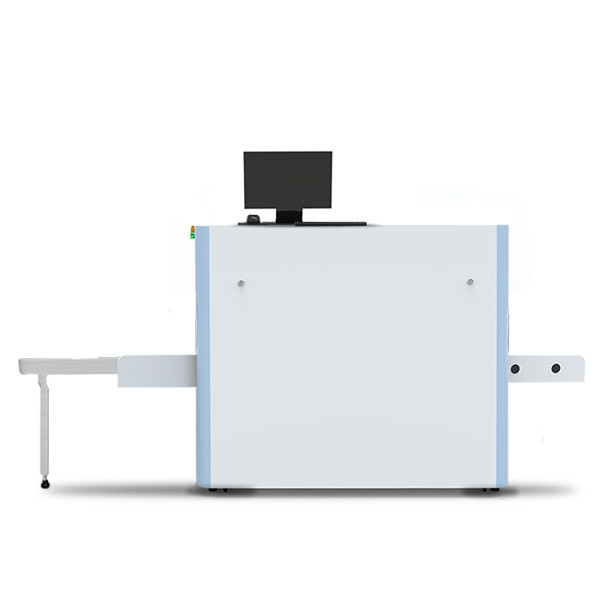

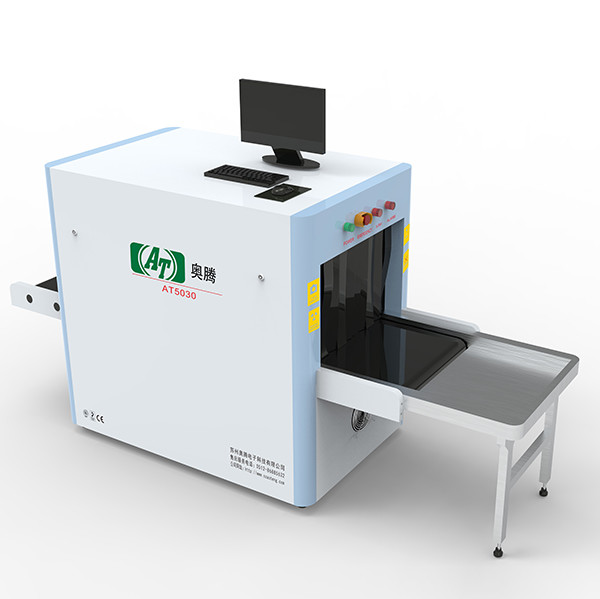

Dual-Energy X-Ray Security Inspection Equipment for Small Packages in Conference Centers.

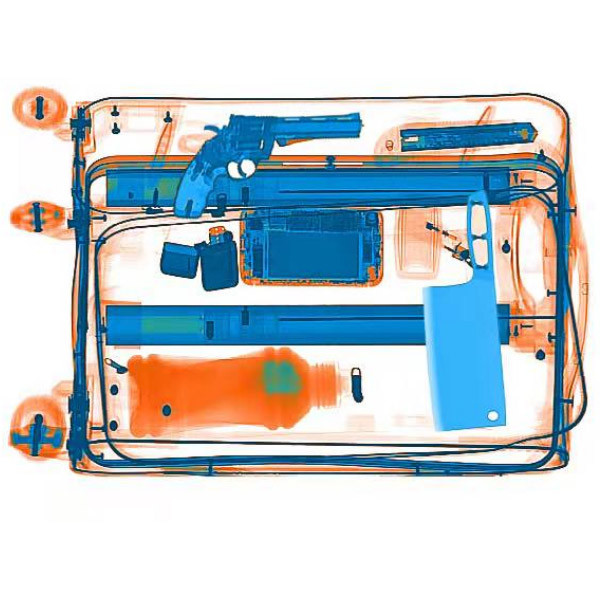

The Dual-Energy X-Ray Security Inspection Equipment is specifically designed for the screening of small packages in conference centers. This advanced security technology utilizes dual-energy imaging to accurately detect and identify potential threats, such as weapons, explosives, or prohibited items, within the packages. It enhances the security measures within conference centers, ensuring the safe and efficient screening of small packages before they enter the premises. This equipment contributes to creating a secure environment for conferences, meetings, and events, providing peace of mind for attendees and protecting the integrity of the venue.

Product Features:

Modularization: The internal circuit structure of the device adopts a modular design approach, which enhances the device's resistance to interference, ensures stable operation, and facilitates maintenance through a rational layout design.

Digitization: The hardware system is designed with the latest ASIC fully digital solution and IN-depth depth acquisition technology. Compared to analog acquisition solutions, this optimized circuit design results in high integration, strong resistance to interference, and clear imaging effects.

Intelligentization: The hardware system integrates practical features such as a real-time image processing system (RTOS), AI intelligent sensing and recognition capabilities, TIP dangerous goods detection, auxiliary alarms for hazardous materials, remote control management, and quick image backup.

Automation: The system incorporates convenient automation features such as one-key power on/off, infrared energy-saving sensing, emergency alarm prompts, and self-diagnostic functions for fault detection.


Content Measurement
Channel Size 500mm (Width) * 300mm (Height)
Conveyor Speed 0.22m/s
Conveyor Load 120 Kg (Uniform Load)
Penetration > 38mm Steel Plate
Wire Resolution > 38 AWG
Spatial Resolution Horizontal/Vertical Φ 1.0mm
Single Inspection Dose < 2.0µGy
Leakage Dose Rate < 1.0µGy/h
Radiation Safety Protection Channel entrance and exit equipped with 0.5mmPb double-layer lead curtain protection,
main body protected by 2~6mm lead plates,
Control Interface Analog Interface
Tube Voltage/Current 140160 KV/0.51.0mA
Duty Cycle 100%, No Preheating Required
Cooling Method Sealed Oil Cooling, Industrial Fan Cooling
Protection Functions Overvoltage Protection, Overcurrent Protection, Overtemperature Protection



Support and Services:

We offer technical support and service for our X Ray Baggage Scanner. Our team of experts is available to help you with any questions or concerns you may have regarding the product. We provide a range of services, including installation and setup, regular maintenance, troubleshooting, and repair. We also offer training courses and a comprehensive range of support documents, including user manuals, tutorials, and FAQs.



Packing and Shipping:

The X Ray Baggage Scanner should be packaged and shipped in the following manner:

  • First, place the X Ray Baggage Scanner in a protective box or wrap it in bubble wrap for extra protection.
  • Secure the box with packaging tape.
  • Write the shipping address on the outside of the box.
  • Place the box in a larger box for extra protection, and fill any empty spaces in the larger box with packing materials such as foam peanuts or air bags.
  • Secure the larger box with packaging tape.
  • Write the shipping address on the outside of the larger box.
  • Finally, send the package out with your chosen carrier.
