Airport Luggage X Ray Baggage Scanner Horizontal security inspection
| Place of Origin | China |
|---|---|
| Brand Name | AT |
| Certification | CE FCC RoHS ISO9001 ISO14001 OHSAS |
| Model Number | AT5030A |
| Minimum Order Quantity | 1PCS |
| Price | Negotiation |
| Packaging Details | Large carton packaging |
| Delivery Time | 4-6 Weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 100PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Noise Level | < 58 DB(A) | Weight | 220KGS |
|---|---|---|---|
| Power Consumption | 0.5 KW (MAX) | (Power Supplyl | AC220V±10%，60Hz±5Hz |

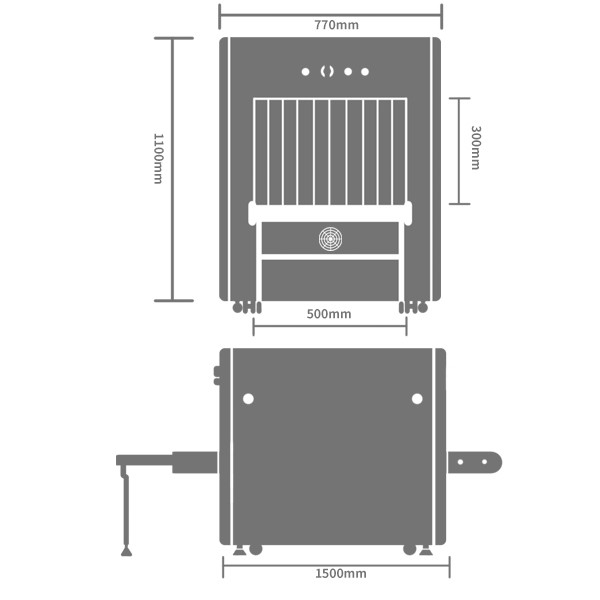

| Channel Height | 650 Mm | Equipment Dimensions | 1500 Mm(L) * 770mm(W)* 1100mm(H) |
| Packaging Dimensions | 1570 Mm(L) * 840mm(W)* 1270mm(H) | Keywords | X Ray Baggage Scanner |
| Highlight | Airport X Ray Baggage Scanner,X Ray Baggage Scanner Horizontal,Luggage X Ray Scanner Security |
||
Product Description
Product Description:
High-definition single-energy X-ray security inspection.
This refers to a security inspection system that utilizes high-definition imaging technology and operates based on a single energy level of X-rays. It is designed to provide detailed and clear images for the detection of potential threats and prohibited items in various objects such as luggage, parcels, and packages. The high-definition imaging capability allows for enhanced visibility and accuracy in identifying objects and differentiating between materials. This type of X-ray security inspection system is commonly used in airport, customs, government buildings, and other high-security facilities to ensure the safety and security of individuals and prevent the transportation of illicit items.
Product Features:
Modularization: The internal circuit structure of the device adopts a modular design approach, which enhances the device's resistance to interference, ensures stable operation, and facilitates maintenance through a rational layout design.
Digitization: The hardware system is designed with the latest ASIC fully digital solution and IN-depth depth acquisition technology. Compared to analog acquisition solutions, this optimized circuit design results in high integration, strong resistance to interference, and clear imaging effects.
Intelligentization: The hardware system integrates practical features such as a real-time image processing system (RTOS), AI intelligent sensing and recognition capabilities, TIP dangerous goods detection, auxiliary alarms for hazardous materials, remote control management, and quick image backup.
Automation: The system incorporates convenient automation features such as one-key power on/off, infrared energy-saving sensing, emergency alarm prompts, and self-diagnostic functions for fault detection.
| Content | Measurement |
| Channel Size | 500mm (Width) * 300mm (Height) |
| Conveyor Speed | 0.22m/s |
| Conveyor Load | 100 Kg (Uniform Load) |
| Penetration | > 10mm Steel Plate |
| Wire Resolution | > 38 AWG |
| Spatial Resolution | Horizontal/Vertical Φ 1.0mm |
| Single Inspection Dose | < 2.0µGy |
| Leakage Dose Rate | < 1.0µGy/h |
| Radiation Safety Protection | Channel entrance and exit equipped with 0.5mmPb double-layer lead curtain protection, main body protected by 2~6mm lead plates, |
| Control Interface | Analog Interface |
| Tube Voltage/Current | 80KV/0.51.0mA |
| Duty Cycle | 100%, No Preheating Required |
| Cooling Method | Sealed Oil Cooling, Industrial Fan Cooling |
| Protection Functions | Overvoltage Protection, Overcurrent Protection, Overtemperature Protection |
Support and Services:
We offer technical support and service for our X Ray Baggage Scanner. Our team of experts is available to help you with any questions or concerns you may have regarding the product. We provide a range of services, including installation and setup, regular maintenance, troubleshooting, and repair. We also offer training courses and a comprehensive range of support documents, including user manuals, tutorials, and FAQs.
Packing and Shipping:
The X Ray Baggage Scanner should be packaged and shipped in the following manner:
- First, place the X Ray Baggage Scanner in a protective box or wrap it in bubble wrap for extra protection.
- Secure the box with packaging tape.
- Write the shipping address on the outside of the box.
- Place the box in a larger box for extra protection, and fill any empty spaces in the larger box with packing materials such as foam peanuts or air bags.
- Secure the larger box with packaging tape.
- Write the shipping address on the outside of the larger box.
- Finally, send the package out with your chosen carrier.
