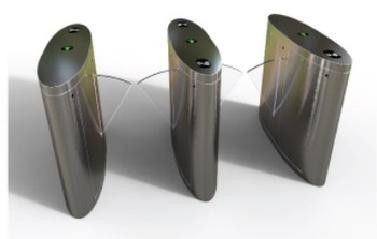

Automatic Flap Barrier Gate Turnstile With 1.2s Closing Time
| Place of Origin | China |
|---|---|
| Brand Name | AT |
| Certification | CE FCC RoHS |
| Model Number | SZAT-Y2008 |
| Minimum Order Quantity | 1PCS |
| Packaging Details | According to customer requirements |
| Delivery Time | 4-6 Weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Closing Time | 1.2s | Control Mode | Remote Control/Button Control |
|---|---|---|---|
| Dimension | 1200*300*980mm | Material | Stainless Steel/Aluminum Alloy |
| Maximum Passage Height | 2.2m | Maximum Passage Width | 3.5m |
| Opening Time | 1.2s | Operating Temperature | -15℃~+70℃ |
| Power Supply | AC/DC | Product Name | Barrier Gate Series |
| Protection Level | IP54 | Voltage | 220V/110V |
| Weight | 65kg | ||
| Highlight | Automatic Flap Barrier Gate,Flap Barrier Gate,Flap Barrier Turnstile |
||
Product Description
Flap Barrier Gate
Technical parameters:
Chassis material: Domestic standard (304) stainless steel
Chassis size:1200X300X980(mm)
· Expansion arm length:260mm
Max.channel width:≤550mm
Weight: Gross weight 65Kg
· Mains voltage:AC220±10%V,50HZ
· Drive motor: DC brush motor(24V)
· Input interface: Relay switch signal or 12V level signal or pulse width >
100ms pulse signal, drive current >10mA
Normal service life: 3 million times
Communication interface:TCP/IP communication
Pass speed:30-40 people /minute
Brake start/ stop time: 0.6 second
Required electriy & pass time: 3 second
· Automatic reset time after trouble takes place: 10 second
· Operating envronment: Indoor,outdoor(cloudiness-shed)
Temperature:- 15 ℃-60 ℃
· Relative humidity:≤90%,no condensatio
