Customized Swing Barrier Gate Turnstile Stainless Steel Material

Place of Origin China
Brand Name AT
Certification CE FCC RoHS
Model Number SZAT-B8000
Minimum Order Quantity 1PCS
Packaging Details According to customer requirements
Delivery Time 4-6 Weeks
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Closing Time 1.2s Control Mode Remote Control/Button Control
Dimension 1200*280*980mm Material Stainless Steel/Aluminum Alloy
Maximum Passage Height 2.2m Maximum Passage Width 3.5m
Opening Time 1.2s Operating Temperature -20℃~+70℃
Power Supply AC/DC Product Name Barrier Gate Series
Protection Level IP54 Voltage 220V/110V
Weight 80kg
High Light

Customized Swing Barrier Gate Turnstile

,

Swing Barrier Gate Turnstile

,

Swing Barrier Turnstile

Leave a Message
Product Description

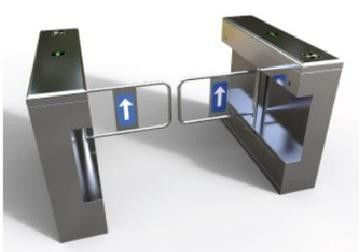

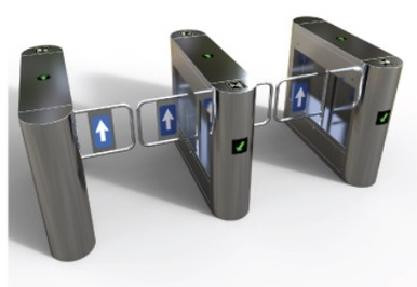

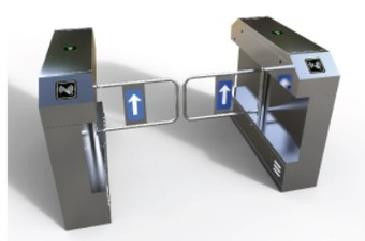

Customized Swing Barrier Gate



echnical parameters:

Chassis material: Domestic standard

(304) stainless steel

· Chassis size:1200L*280W"980H(mm)

· Expansion arm length:260mm

Max .channel width:≤550mm

· Weight: Gross weight 65Kg

Mains voltage:AC220±10% V,50HZ

Drive motor: DC brush motor(24V)

Input interface: Relay switch signal or 12V

level signal or pulse width >100ms pulse

signal, drive current >10mA

■ Normal service life: 3 million times

Communication interface:TCP/IP

communication

Pass speed: 30-40 people /minute

Brake start / stop time: 0.6 second

Required electrify & pass time: 3 second

Automatic reset time after trouble takes

place: 10 second

· Operating environmentIndoor, outdoor

(cloudiness-shed)

Temperature:- 15 ℃—60 ℃

· Relative humidity: ≤%, o

condensation
