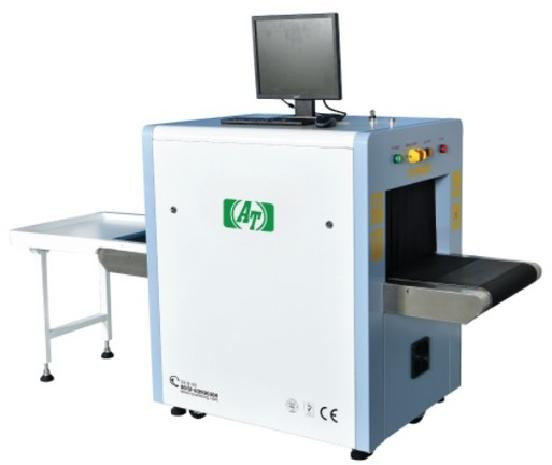

Multi Energy X Ray Baggage Screening Machine Image processing system

Place of Origin China
Brand Name AT
Certification CE FCC RoHS
Model Number AT-5030C
Minimum Order Quantity 1PCS
Packaging Details According to customer requirements
Delivery Time 4-6 Weeks
Payment Terms L/C, T/T
Supply Ability 1

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name X-ray Baggage Scanner Series Type Baggage Screening Machine
Alarm Mode Sound & Lights Detection Speed 0.22m/s
Operating Humidity 20%~95%(no Condensation Image Processing Display 24-digit Nature Color
Image Resolution Display High Resolution 17-inch Liquid Crystal Operating Temperature 20℃~60℃
Power Supply 220VAC(±10%)50±3HZ Size 500(width)X300(high)mm
Conveyor Belt Rated Load 150KGS X-ray Sensor L-shaped LED Display Detector(single Energy),12bit Depth
Power Loss <1kw Pass Rate 720PCS/hour
Penetrating Power > Thickness 30mm Steel Plate X-ray Generator Digital X-Ray Tube Voltage 80- 160KV(adjustable), Current 0.3- 1.2m A(regulative)
Line Resolution Diam.0.0787 Mm Wire Penetrating Resolution Diam.0.127mm
High Light

X Ray Baggage Screening Machine


Baggage Screening Machine


Multi Energy X Ray Screening Machine

Leave a Message
Product Description

Image processing system:

   X -ray sensorL-shaped LED display detector (muli-energy), 12bit depth

Display High resolution 17-inch iquid crystal display

Color image display As per substance material, 24-digit nature color


Edge reinforcement Clearer object contour edge

Super-image reinforcement Super-image reinforcement

High penetration display It enhances bright zone contrast in image with clearer easy penetration area

Image recovery Image display restores to initial state

Image storage It can have real-time storage to any image with wanton image disposal and continuous work storage

Multi-energy colorful Orange for organism, blue for inorganics,green for mixtur

High energy /low energy Two-energy conversion / display

Auxiliary detection to drug / explosive It can have auxiliary detection to certain typical drug /explosive etc.
