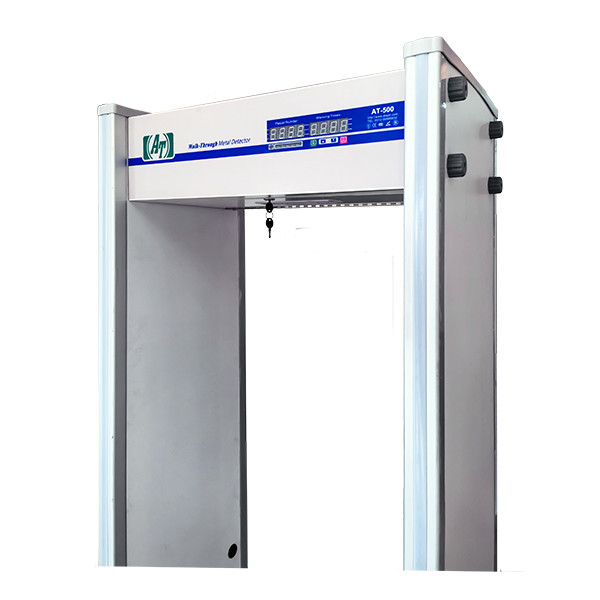

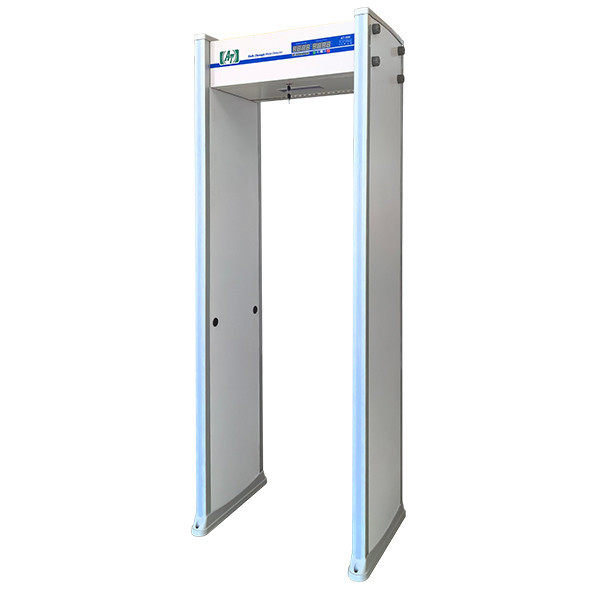

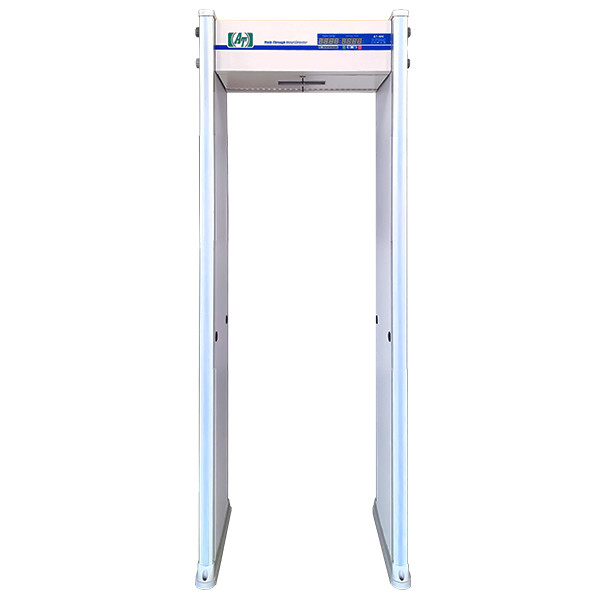

Outdoor Walk Through Metal Detector Security Gate Waterproof For Exhibition

Place of Origin China
Brand Name AT
Certification CE FCC RoHS ISO9001 ISO14001 OHSAS
Model Number AT-500A
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Large carton packaging
Delivery Time 4-6 Weeks
Supply Ability 100Pcs/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Place Government Law Enforcement Agencies Public Places Security Checks In Various Production-oriented Enterprises. Outer Frame Size H2240mm X W860mm X D580mm
Inner Frame Size H2010mm X W700mm X D500mm Gross Weight ≤65KG
Power Consumption <35W Power Supply AC 100V~240V 50Hz
Sensitivity Level 0-100 Working Humidity 98%, Non-condensing
Working Temperature -20℃~+55℃ Keywords Walk Through Metal Detector Security Gate
High Light

Outdoor Walk Through Metal Detector


Walk Through Metal Detector Waterproof


Metal Detector Security Gate Waterproof

Leave a Message
Product Description

Outdoor Waterproof Metal Detector Door for Exhibition Centers.

The Outdoor Waterproof Metal Detector Door is specifically designed for use in exhibition centers. This durable and weather-resistant security device efficiently detects metal objects on individuals passing through the entrance. With its waterproof design, it can withstand outdoor conditions. This advanced metal detector enhances the security measures in exhibition centers by accurately identifying potential threats, such as weapons or prohibited items. It ensures the safety and integrity of exhibitions, trade shows, and events, providing a secure environment for participants and visitors. The outdoor waterproof feature makes it ideal for use in various weather conditions encountered in outdoor exhibition areas.

Outdoor Waterproof Metal Detector Door  Product Features:

Rainproof Design: Exclusive rainproof design allows normal operation in outdoor (rainy) conditions.

Detection Accuracy: The highest sensitivity can detect metal objects as small as a one-yuan coin.

Detection Area: Single-frequency excitation technology divides the detection area into 6 overlapping mesh detection zones.

Infrared Beam Scanning: Captures sensing signals and automatically counts the number of people, eliminating detection errors caused by delayed sensing during passage.

Digital Pulse Technology: Interactive transmission and reception accurately determine the location of metal objects through the two-side columns.

Adjustable Sensitivity: All 6 detection zones can be adjusted with 100 levels of sensitivity.

Durability: The surface of the door is wear-resistant, corrosion-resistant, waterproof, moisture-proof, fireproof, and does not deform.

Alarm Zone Indicator Lights: High-brightness red digital tubes display the number of people passing through and the number of alarms in each prohibited item area.

Safety: Harmless to individuals wearing pacemakers, pregnant women, and magnetic media.


Outdoor Waterproof Metal Detector Door

Parameter Specification
Transport Weight Approximately 65kg
Power Consumption Less than 35W
Operating Temperature -20℃~+55℃
Operating Humidity 98%, non-condensing
Operating Frequency Adjustable based on installation environment
External Power Supply AC 100V to 240V, 50Hz
Operating Frequency Adjustable based on installation environment
Dimensions H2200mm x W860mm x D580mm
Passage Dimensions H2010mm x W700mm x D500mm

Outdoor Waterproof Metal Detector Door against the technical parameter :
Fully compliant with CE, FCC, and RoHS certifications.
Radiation compliance according to EN50081-1 standard.
Anti-interference compliance according to EN50082-1 standard.
Certified with ISO9001:2008 quality management system.
Certified with ISO14001 environmental management system.
Certified with OHSAS occupational health and safety management system.
Strict adherence to GB15210-2003 national standard for walkthrough metal detectors.
 Detecting Prohibited Items
1.Firearms and Ammunition: Including handguns, rifles, shotguns, bullets, etc.
2.Knives and Blades: Such as daggers, knives, swords, stilettos, etc.
3.Explosives and Bombs: Including bombs, explosives, fireworks, etc.
4.Offensive Weapons: Such as clubs, batons, stun guns, etc.
5.Defensive Equipment: Such as bulletproof vests, stab-proof vests, hazmat suits, etc.
