Digital Pulse Walk Through Metal Detector Multiple Zone Alarms

Place of Origin China
Brand Name AT
Certification CE FCC RoHS ISO9001 ISO14001 OHSAS
Model Number AT-1088X
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Large carton packaging
Delivery Time 4-6 Weeks
Supply Ability 100Pcs/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Application Place Government Law Enforcement Agencies Public Places Security Checks In Various Production-oriented Enterprises. Outer Frame Size H2220mm X W800mm X D780mm
Inner Frame Size H2000mm X W780mm X D420mm Gross Weight ≤80KG
Power Consumption <10W Power Supply AC 100V~240V 50Hz/60HZ
Sensitivity Level 0-100 Working Humidity 98%, Non-condensing
Working Temperature -20℃~+55℃
Leave a Message
Product Description

Accurate Positioning Walk Through Metal Detector For Government Departments Use

The Multiple Zone Alarms Walk Through Metal Detector is a specialized security device designed for use in government departments. It features multiple detection zones that accurately identify the location of metal objects on individuals passing through it. This detector offers high sensitivity and precise targeting, ensuring effective screening for prohibited items. It is equipped with an alarm system that alerts security personnel to the presence of metal objects, enabling swift response and enhanced security measures. The device is ideal for maintaining the safety and integrity of government facilities by preventing the unauthorized entry of metallic objects.

Accurate Positioning Walk Through Metal Detector For Government Departments Use  Product Features:

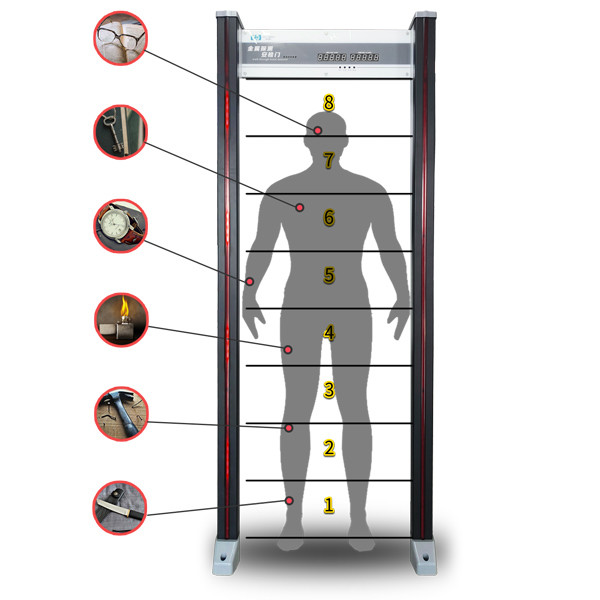

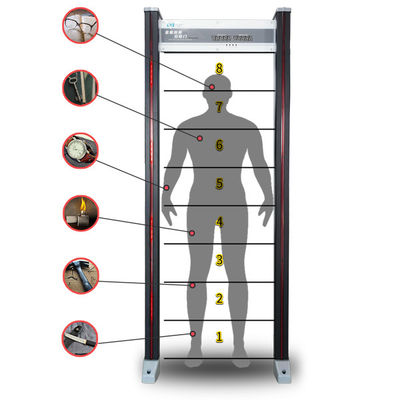

Accurate Positioning: It is divided into 8 overlapping mesh detection zones, providing intuitive display of the target object's position.
Multiple Zone Alarms: Capable of simultaneously locating multiple metal positions.
Microprocessor Technology: The scanning electromagnetic waves are generated and controlled by a microcomputer-controlled circuit, allowing for precise control of the scanning rate.
Composite Circuit Design: Equipped with scattered infrared devices and automatic computer recognition, it automatically counts the number of alarms and people passing through.
Digital Pulse Technology: Features a digital signal processing and filtering system, providing excellent resistance to electromagnetic interference.
Adjustable Sensitivity: Each detection zone has 1000 sensitivity levels, and the overall sensitivity can be adjusted simultaneously for all 18 zones.
Strong Resistance Design: With strong impact and collision resistance, unaffected by external factors.
Magnetic Field Emission Technology: Adheres to current international safety standards, utilizing weak magnetic field technology.
Serial Port Communication: Equipped with TCP data communication interface, enabling real-time online functionality when connected to a computer network.
Control Center: Includes a backend management center database for easy statistical queries.


Accurate Positioning Walk Through Metal Detector For Government Departments Use

Parameter Specification
Transport Weight Approximately 65kg
Power Consumption Less than 35W
Operating Temperature -20℃~+55℃
Operating Humidity 98%, non-condensing
Operating Frequency Adjustable based on installation environment
External Power Supply AC 100V to 240V, 50Hz
Operating Frequency Adjustable based on installation environment

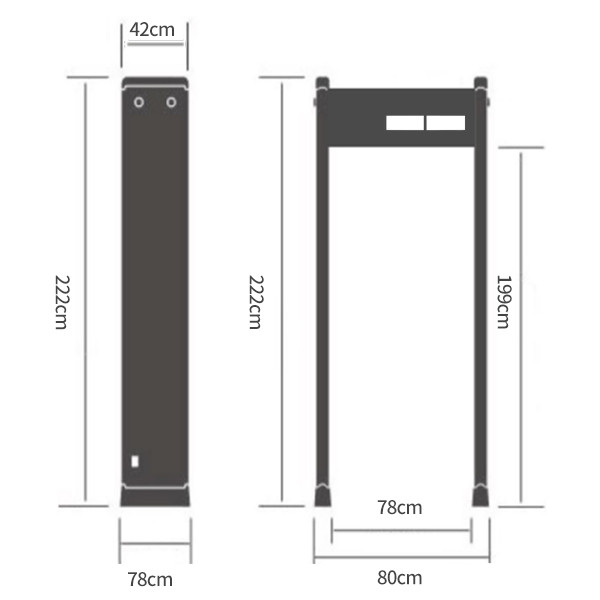

Dimensions H2200mm x W860mm x D580mm
Passage Dimensions H2010mm x W700mm x D500mm

Accurate Positioning Walk Through Metal Detector For Government Departments Use against the technical parameter :
Fully compliant with CE, FCC, and RoHS certifications.
Radiation compliance according to EN50081-1 standard.
Anti-interference compliance according to EN50082-1 standard.
Certified with ISO9001:2008 quality management system.
Certified with ISO14001 environmental management system.
Certified with OHSAS occupational health and safety management system.
Strict adherence to GB15210-2003 national standard for walkthrough metal detectors.
 Detecting Prohibited Items
1.Firearms and Ammunition: Including handguns, rifles, shotguns, bullets, etc.
2.Knives and Blades: Such as daggers, knives, swords, stilettos, etc.
3.Explosives and Bombs: Including bombs, explosives, fireworks, etc.
4.Offensive Weapons: Such as clubs, batons, stun guns, etc.
5.Defensive Equipment: Such as bulletproof vests, stab-proof vests, hazmat suits, etc.
