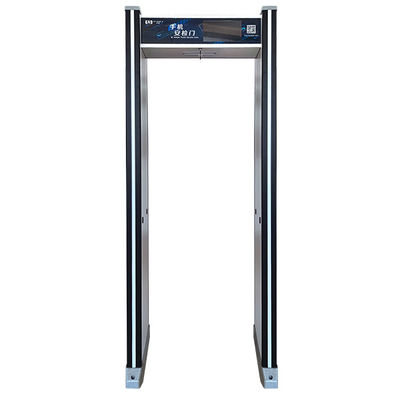

Modular Walk Through Security Gate Interlocking Walking Metal Detector
| Place of Origin | China |
|---|---|
| Brand Name | AT |
| Certification | CE FCC RoHS ISO9001 ISO14001 OHSAS |
| Model Number | AT-8066S.29 |
| Minimum Order Quantity | 1PCS |
| Price | Negotiation |
| Packaging Details | Large carton packaging |
| Delivery Time | 4-6 Weeks |
| Supply Ability | 100Pcs/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application Place | Schools, Examination Centers, Electronic Factories, Public Security, Procuratorate, Courts, Prisons, Detention Centers, And Classified Facilities. | Independent Detection Zones | 8 |
|---|---|---|---|
| Sensitivity | Level 0-300 | Throughput Rate | 0.4m/s - 1.2m/s |
| Power Consumption | <30W | Outer Frame Size | H2210mm X W860mm X D780mm |
| Inner Frame Size | H2000mm X W700mm X D430mm | Power Supply | AC 100V~240V 50/60Hz |
| Working Humidity | 98%, Non-condensing | Working Temperature | -20℃～+55℃ |
| Keywords | Walking Metal Detector | ||
| High Light | Modular Walk Through Security Gate,Walk Through Security Gate Interlocking,Interlocking Walking Metal Detector |
||
Product Description

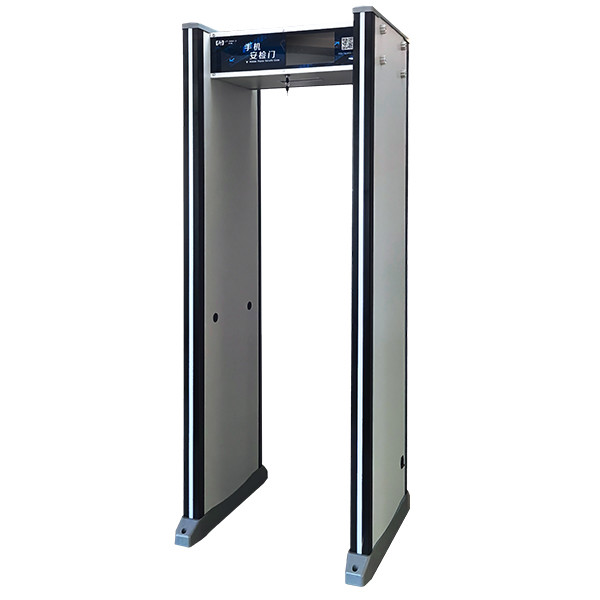

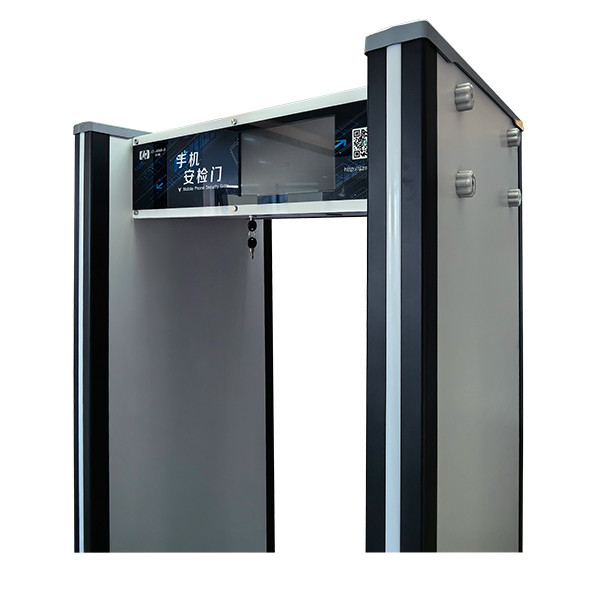

Intelligent Imaging 29-Inch Screen Smartphone Detection Door
The Smartphone Detection Door utilizes advanced electromagnetic wave signal detection technology to effectively exclude everyday items such as belt buckles, glasses, pens, stationery bags, umbrellas, keys, mechanical watches, etc., and focuses specifically on detecting smartphones. It can be applied in various important and common locations, including schools, examination centers, electronic factories, public security, procuratorate, courts, prisons, detention centers, and other classified facilities. These are among the most significant and frequently encountered environments where smartphone security gates are commonly used.
Intelligent Imaging 29-Inch Screen Smartphone Detection Door
Product Features:
Multiple Zone Technology: Multiple overlapping detection zones.
Interference Resistance: 12 adjustable working frequency bands, multiple devices can alarm simultaneously.
Magnetic Field Segmentation Principle: 8 grid-like magnetic field distribution, independent detection, real-time calculation.
UPS Backup Power: Multiple options for 6 hours/12 hours/24 hours backup power.
Safety: Harmless to individuals wearing pacemakers, pregnant women, and magnetic media.
Detection Capacity: Capability to detect and process over 60-150 individuals per minute.
Interlocking Function: Integration with access control systems to manage alarmed individuals.
Modular Design: Easy maintenance and updates.
Signal Visualization: Graphical display of detection signals for clear device status monitoring.
Intelligent Imaging: 29-inch screen for direct observation.
Product Advantages:
Smart Recognition: Automatically identifies and excludes everyday items during smartphone detection.
Wide Door Panel Design: Stable, robust, durable, and non-deforming housing.
Automatic Calibration: Equipped with an automatic calibration mode to adapt to the installation site and eliminate interference.
Signal Visualization: Graphical display of detection signals for clear device status monitoring.
USB Upgrades: Application software can be upgraded via USB or SD card.

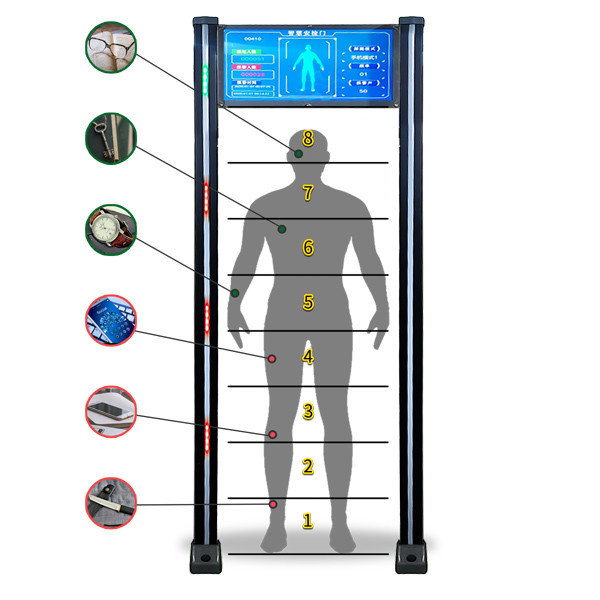

Multi-zone Alarm Function: 8 zones on each side, indicating the location of the alarmed smartphone.
Modular Component Design: Convenient and quick for transportation and maintenance.
Multiple devices can work side by side with a minimum distance of 80cm-100cm.
Optional thermal imaging system for temperature measurement.
Intelligent Imaging 29-Inch Screen Smartphone Detection Door
| Parameter | Specification |
| Transport Weight | Approximately 65kg |
| Power Consumption | Less than 30W |
| Operating Temperature | -20℃～+55℃ |
| Operating Humidity | 98%, non-condensing |
| Operating Frequency | Adjustable based on installation environment |
| External Power Supply | AC 100V~240V 50/60Hz |
| Operating Frequency | Adjustable based on installation environment |

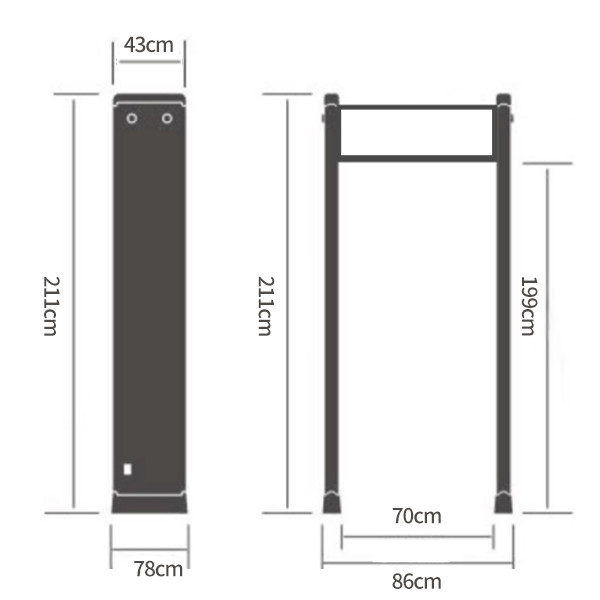

| Dimensions | H2210mm x W860mm x D780mm |
| Passage Dimensions | H2000mm x W700mm x D430mm |
Smartphone Detection Door against the technical parameter :
Fully compliant with CE, FCC, and RoHS certifications.
Radiation compliance according to EN50081-1 standard.
Anti-interference compliance according to EN50082-1 standard.
Certified with ISO9001:2008 quality management system.
Certified with ISO14001 environmental management system.
Certified with OHSAS occupational health and safety management system.
Strict adherence to GB15210-2003 national standard for walkthrough metal detectors.
Detecting Prohibited Items
1. Firearms and Ammunition: Including handguns, rifles, shotguns, bullets, etc.
2. Knives and Blades: Such as daggers, knives, swords, stilettos, etc.
3. Explosives and Bombs: Including bombs, explosives, fireworks, etc.
4. Offensive Weapons: Such as clubs, batons, stun guns, etc.
5. Defensive Equipment: Such as bulletproof vests, stab-proof vests, hazmat suits, etc.
