Multi Zone Walk Through Metal Detector Archway AC 100V To 240V

Place of Origin China
Brand Name AT
Certification CE FCC RoHS ISO9001 ISO14001 OHSAS
Model Number AT-200P
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Large carton packaging
Delivery Time 4-6 Weeks
Supply Ability 100Pcs/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Application Place Public Venues, Outer Frame Size H2200mm X W810mm X D580mm
Inner Frame Size H12000mm X W700mm X D420mm Gross Weight ≤64KG
Power Consumption <30W Power Supply AC 100V~240V 50Hz
Sensitivity Level 0-100 Working Humidity 98%, Non-condensing
Working Temperature -20℃~+55℃
High Light

100V Walk Through Metal Detector


Walk Through Metal Detector 240V


Multi Zone Metal Detector Archway

Leave a Message
Product Description

Multi-Zone High-Sensitivity Walk Through Metal Detector For Public Venues Use
Adopting microprocessing technology, the electromagnetic waves generated by the microcomputer-controlled circuit are employed to perform scanning. The scanning rate can be precisely controlled. The equipment is capable of detecting metals carried by individuals passing through the metal detector gate. When the detected value exceeds the pre-set parameters, it automatically triggers an alarm, enabling security personnel to promptly identify any prohibited metal items carried by the individual. This technology is applicable for security inspections in various locations, including government law enforcement agencies, public venues, and manufacturing enterprises.

Multi-Zone High-Sensitivity Walk Through Metal Detector For Public Venues Use  Product Features:

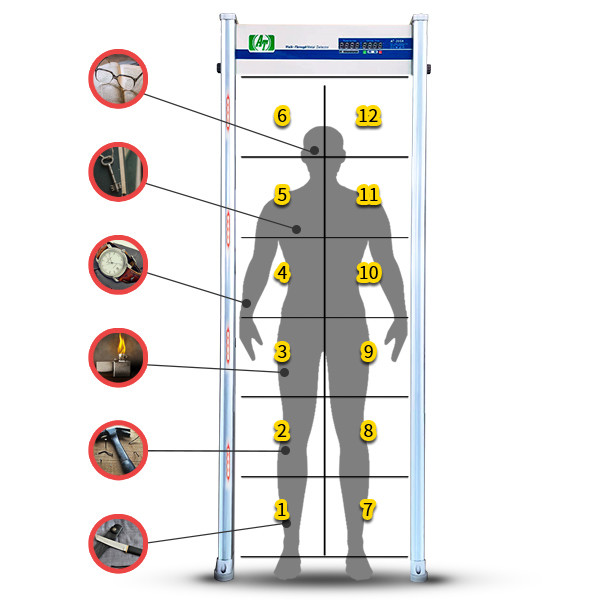

1.Detection Area: Multiple overlapping detection zones utilizing mesh detection and single-frequency excitation technology.

2 Detection Sensitivity: It can detect metals as small as a one-Yuan coin, with adjustable sensitivity in different zones.

3 Frequency Switching: Switchable frequencies to avoid interference between products in the same area.

4 Strong Anti-interference Capability: Utilizes digital, analog, and left-right balance technologies to prevent false alarms and missed detections.

5 Safety: Harmless to individuals with pacemakers, pregnant women, and magnetic media.

6 Electromagnetic Radiation: Complies with EMC electromagnetic radiation standards, employing weak magnetic field technology.

7 Intelligent Statistics: Intelligent flow and alarm counting functions automatically record the number of people passing through and the number of alarms.

8 Appearance and Craftsmanship: Manufactured using PVC synthetic materials and special processes for durability.

9 Audio-Visual Alarm: Different tones indicate the size of detected metals, and the alarm light can display the height at which the concealed item is located on the person.

10 Safety Protection: Parameter settings are automatically stored, eliminating the need for uninterrupted power supply protection, ensuring a safer and more convenient operation.

Multi-Zone High-Sensitivity Walk Through Metal Detector For Public Venues Use

Parameter Specification
Transport Weight Approximately 64kg
Power Consumption Less than 30W
Operating Temperature -20℃~+55℃
Operating Humidity 98%, non-condensing
Operating Frequency Adjustable based on installation environment
External Power Supply AC 100V to 240V, 50Hz
Operating Frequency Adjustable based on installation environment

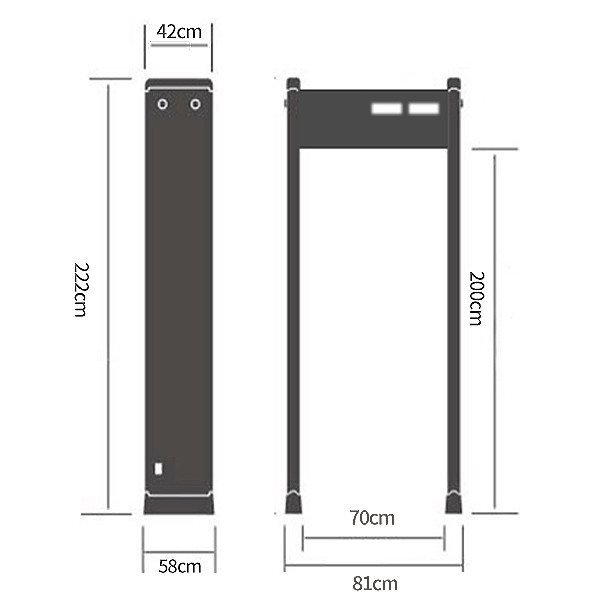

Dimensions H2200mm x W820mm x D480mm
Passage Dimensions H2000mm x W700mm x D420mm

Multi-Zone High-Sensitivity Walk Through Metal Detector For Public Venues Use against the technical parameter :
Fully compliant with CE, FCC, and RoHS certifications.
Radiation compliance according to EN50081-1 standard.
Anti-interference compliance according to EN50082-1 standard.
Certified with ISO9001:2008 quality management system.
Certified with ISO14001 environmental management system.
Certified with OHSAS occupational health and safety management system.
Strict adherence to GB15210-2003 national standard for walkthrough metal detectors.
 Detecting Prohibited Items
1.Firearms and Ammunition: Including handguns, rifles, shotguns, bullets, etc.
2.Knives and Blades: Such as daggers, knives, swords, stilettos, etc.
3.Explosives and Bombs: Including bombs, explosives, fireworks, etc.
4.Offensive Weapons: Such as clubs, batons, stun guns, etc.
5.Defensive Equipment: Such as bulletproof vests, stab-proof vests, hazmat suits, etc.
