Security Walk Through Metal Detector 12 Independent Detection Zones

Place of Origin China
Brand Name AT
Certification CE FCC RoHS ISO9001 ISO14001 OHSAS
Model Number AT-008A
Minimum Order Quantity 1PCS
Price negotiation
Packaging Details Large carton packaging
Delivery Time 4-6 Weeks
Supply Ability 100Pcs/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Place Prisons/ Courts/ Schools/Hospitals/Electronic Enterprises Outer Frame Size H2200mm X W800mm X D580mm
Inner Frame Size H1980mm X W700mm X D380mm Gross Weight ≤70KG
Power Consumption <15W Power Supply AC100V~240V 50/60Hz
Sensitivity Level 0-100 Working Humidity 95%, Non-condensing
Working Temperature -25℃~+55℃
Leave a Message
Product Description

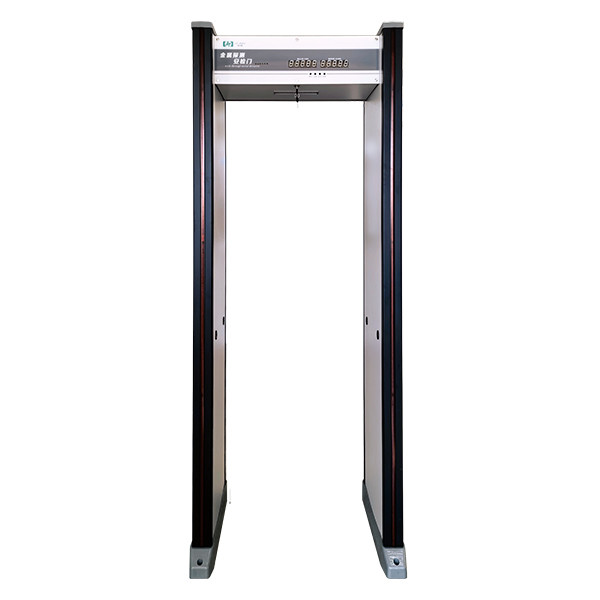

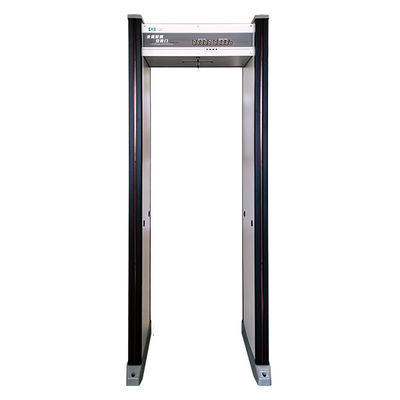

12 Independent Detection Zones Walk Through Metal Detector



The 12 Independent Detection Zones Walk Through Metal Detector is a cutting-edge security device that provides accurate and efficient screening. With its advanced technology, it divides the detection area into 12 independent zones, allowing precise pinpointing of any metal objects.

The 12 Independent Detection Zones Walk Through Metal Detector is designed for seamless operation and effective security screening. It is equipped with LED lights on both sides of the gate, providing visual indications of the location of the detected metal objects.

Featuring 12 detection zones, it offers comprehensive coverage and reliable detection. When a metal object is detected, the device triggers an audio-visual alarm, alerting security personnel to take appropriate action.

With its compact and user-friendly design, this metal detector is easy to install and operate. It is suitable for various environments, such as airports, schools, and event venues, where enhanced security measures are required.

The 12 Independent Detection Zones Walk Through Metal Detector is a reliable and efficient solution for maintaining a safe and secure environment, ensuring effective screening for the presence of metal objects.



The  product features of 12 Independent Detection Zones Walk Through Metal Detector:

Product Features Description
Ultra-high detection sensitivity Can detect tiny colored metal objects weighing 5-8 grams in the center of the gate, sensitivity adjustable.
Detection accuracy Intelligent discrimination of non-ferromagnetic metal objects.
Ultra-low detection height Can alarm when metal objects above 2cm from the ground enter the detection area.

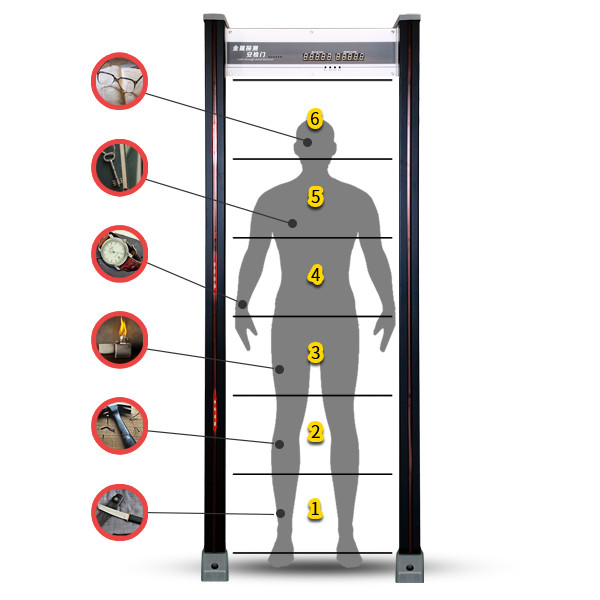

Multi-zone alarm function 12 independent detection zones, LED lights on both sides of the gate.
Audio-visual alarm Selectable alarm sound with 8 adjustable tones.
Frequency settings Automatically set 11 frequencies with different ring tones for each frequency.

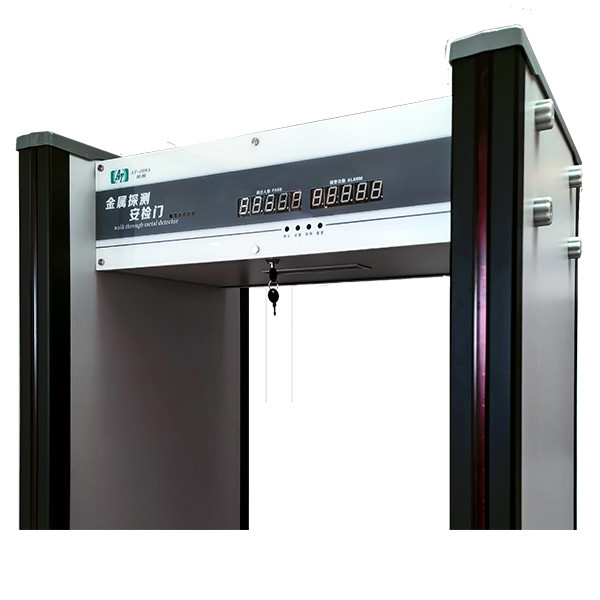

Panel display High-brightness digital display.
People counting Dual-sided infrared beams accurately detect the number of people passing through and alarm counts.
Anti-vibration design Unique anti-vibration design to prevent false alarms caused by wind or intentional shaking.



Some  Key Specifications of  12 Independent Detection Zones Walk Through Metal Detector:

Parameter Specification
Transport Weight Approximately 70kg
Power Consumption Less than 15W
Operating Temperature -25°C to 55°C
Operating Humidity 95%, non-condensing
External Power Supply 187V to 242V, 50/60Hz
Operating Frequency Adjustable based on installation environment
External Power Supply AC 100V to 240V, 50Hz
Operating Frequency Adjustable based on installation environment

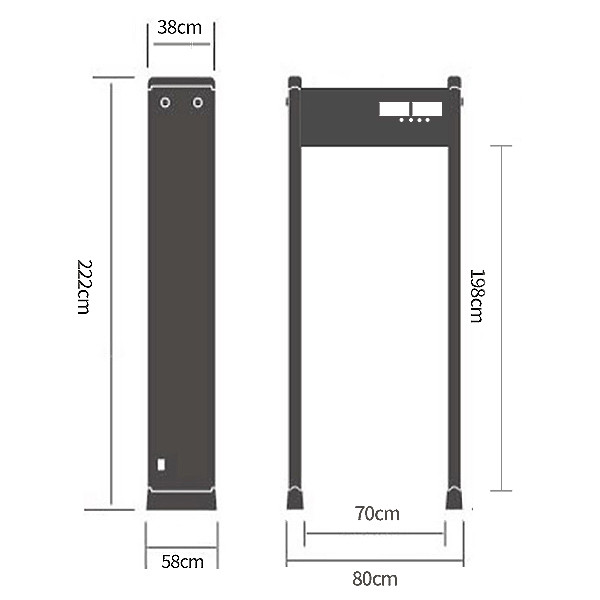

Dimensions Height 220cm x Width 80cm x Depth 58cm
Passage Dimensions Height 198cm x Width 70cm x Depth 38cm





The Application Fields of 12 Independent Detection Zones Walk Through Metal Detector :

Prisons /Courts/Schools/Hospitals/Electronic enterprises/Ports/Passenger terminals/Exhibition halls/Conference centers/Major celebration/Concerts



The quality of Walk Through Metal Detector against the technical parameter :

Fully compliant with CE, FCC, and RoHS certifications.

Radiation compliance according to EN50081-1 standard.

Anti-interference compliance according to EN50082-1 standard.

Certified with ISO9001:2008 quality management system.

Certified with ISO14001 environmental management system.

Certified with OHSAS occupational health and safety management system.

Strict adherence to GB15210-2003 national standard for walkthrough metal detectors.
